Network Video Recorders | Secure Recording Solutions
Overview
AI-Powered Search

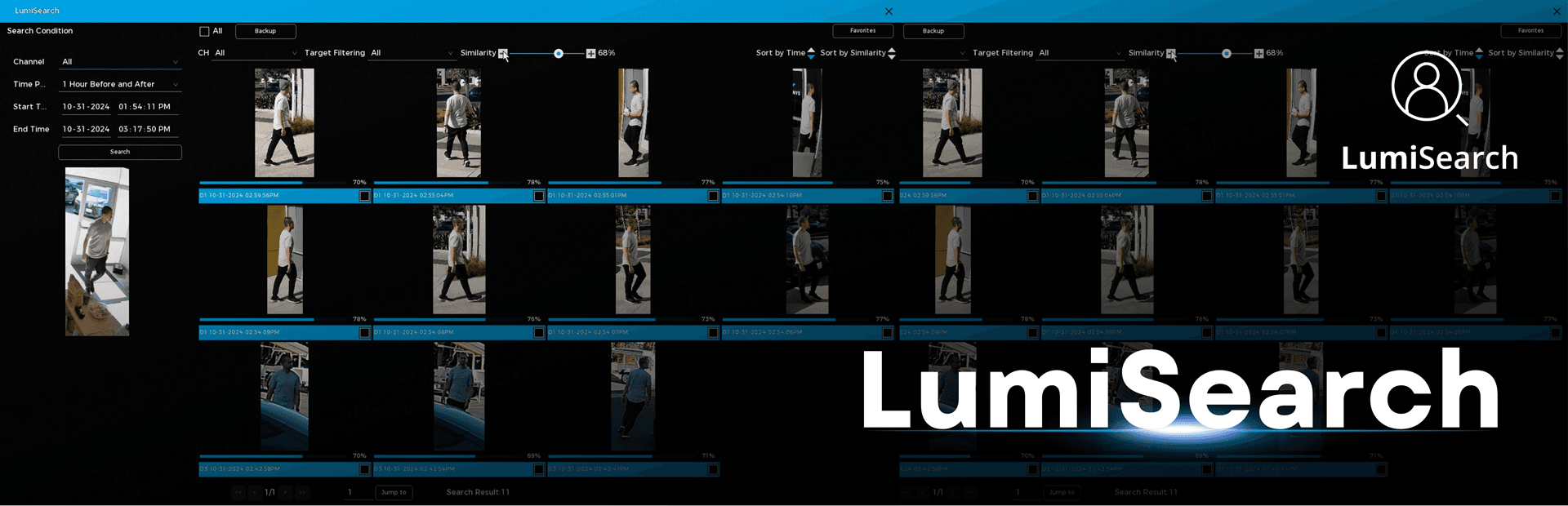

LumiSearch+ helps you quickly locate individuals or events across multiple feeds.
Scalable Solutions
Scale your system up to 128 channels to accommodate growing infrastructure.
Enhanced Power Options
LumiPower supports long-distance PoE connections up to 3,000 feet.
Luminys NVR Series
R5 offers LumiSearch+ and advanced analytics such as iMD, VCA, Face Detection, and Face Recognition for smarter security management.

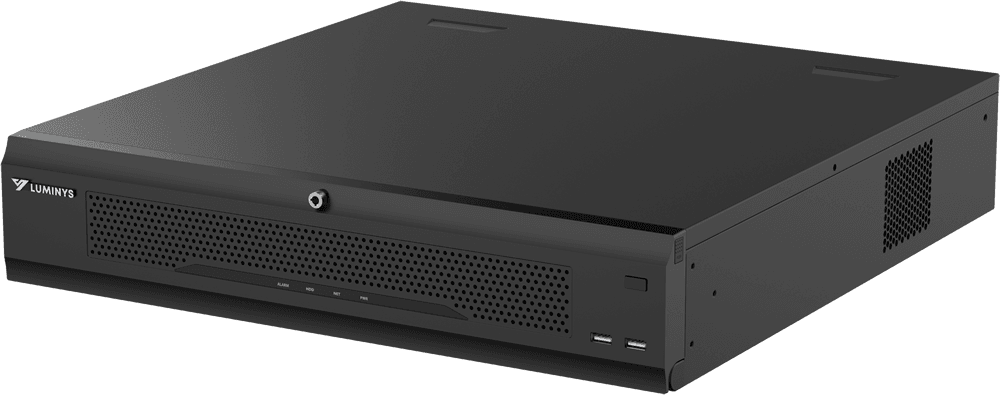

R6 offers extreme storage, scalability and analytics for those that need power and performance.
Empowering Your Security With Intelligent Technology
Compare Models
 |  | | | |
| MODEL | R3 NVR | R4 NVR | R5 NVR | R6 NVR |
| LUMINYS SERIES | STARTER SERIES | Mainstream Series | Mainstream Series | Extreme Series |
| RECORDING | ||||
| Number of Channels | 4, 8, or 16 | 8, or 16 | 8, 16, or 32 | 32, 64, or 128 |
| Max. Camera Resolution | 8MP | 16MP | 32MP | 32MP |
| Max. Video Output | 4K | 4K | 4K | 8K |
| H.265+, H.265, H.264 Compression | Y | Y | Y | Y |
| Max. Recording* | 160 Mbps | 256 Mbps | 400 Mbps | 1400 Mbps |
| Fisheye Dewarping | - | - | Y | Y |
| ONVIF Profiles | S, T, G | S, T, G | S, T, G | S, T, G, M |
| STORAGE | ||||
| Max. Storage | 20 TB | 32 TB | 64 TB | 160 TB |
| JBOD, RAID | JBOD | JBOD | JBOD | JBOD, RAID 0, 1, 5, 6, 10 |
| Hot Swap | - | - | - | Y |
| PHYSICAL | ||||
| Ethernet Ports (1 GB) | 1 | 1 | 1 | Dual NIC 2.5 Gbps |
| Total PoE Ports | 4, 8, or 16 | 8 or 16 | 8, 16 ,or 24 | - |
| LumiPower PoE | - | - | Y | - |
| eSATA Port | - | - | Y (32CH) | Y |
| Rackable, Desktop | Y** | Y | Y | Y |
| Size | Mini, 1U | 1U | 1U, 1.5U | 2.5U |
| USB Ports | 2 | 2 | 2, 3 (32CH) | 4 |
| Mouse | Y | Y | Y | Y |
| SOFTWARE | ||||
| WebGUI | Y | Y | Y | Y |
| LumiViewer | Y | Y | Y | Y |
| LumiCloud Lite | Y | - | Y | - |
| LumiCloud ($) | Y | - | Y | - |
| LumiCenter ($) | Y | Y | Y | Y |
| ANALYTICS | ||||
| LumiSearch+ | - | - | Y | Y |
| Analytics by Camera | Y | Y | Y | Y |
| Analytics by Recorder | - | Y | Y | Y |
| iMD | Y | Y | Y | Y |
| VCA | Y | Y | Y | Y |
| Face Detection | Y | Y | Y | Y |
| Face Recognition | - | Y | Y | Y |
| Video Metadata | - | - | - | Y |
| LPR (Requires LPR Camera) | Y | Y | Y | Y |
See NVR datasheets for complete specifications
* Maximum bandwidth with AI turned off.** 4 and 8 Ch Mini are not rack mountable.
$ = LumiCloud and LumiCenter licenses sold separately.
