Overview

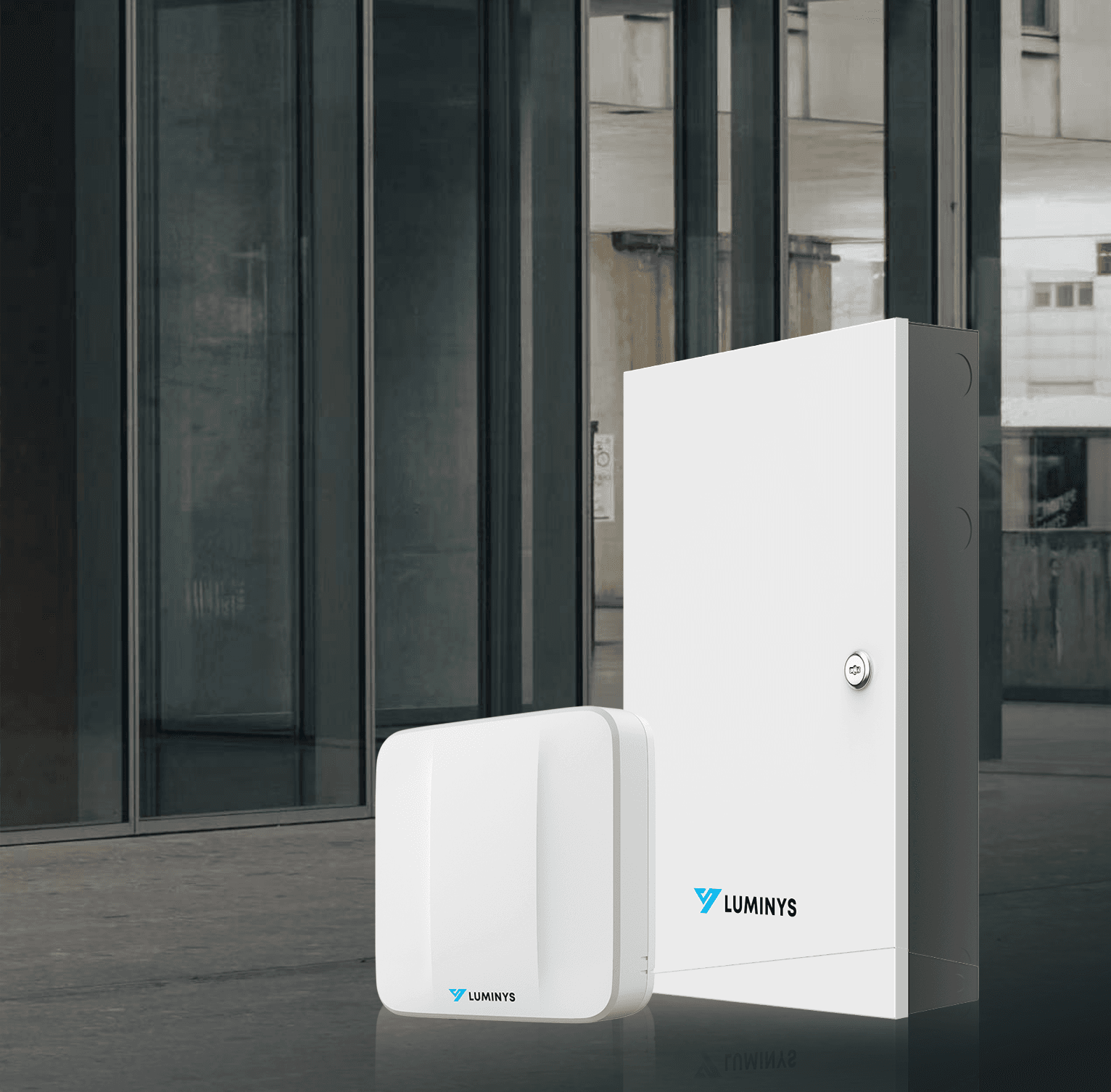

Simple Web Configuration

Easily configure and manage your access control system through the Web Access Controller’s built-in web server.

Mobile Credential Access

Enable Bluetooth access through your mobile device for touchless, secure entry across all doors.

Scalable Security Solutions

Stack up to 14 sub-controllers to manage up to 30 doors. The Web Access Controller provides real-time monitoring, alarm management, and mobile integration.

Manage Up to 30 Doors

Stack 14 sub-controllers to manage more doors, providing power to locks and readers.

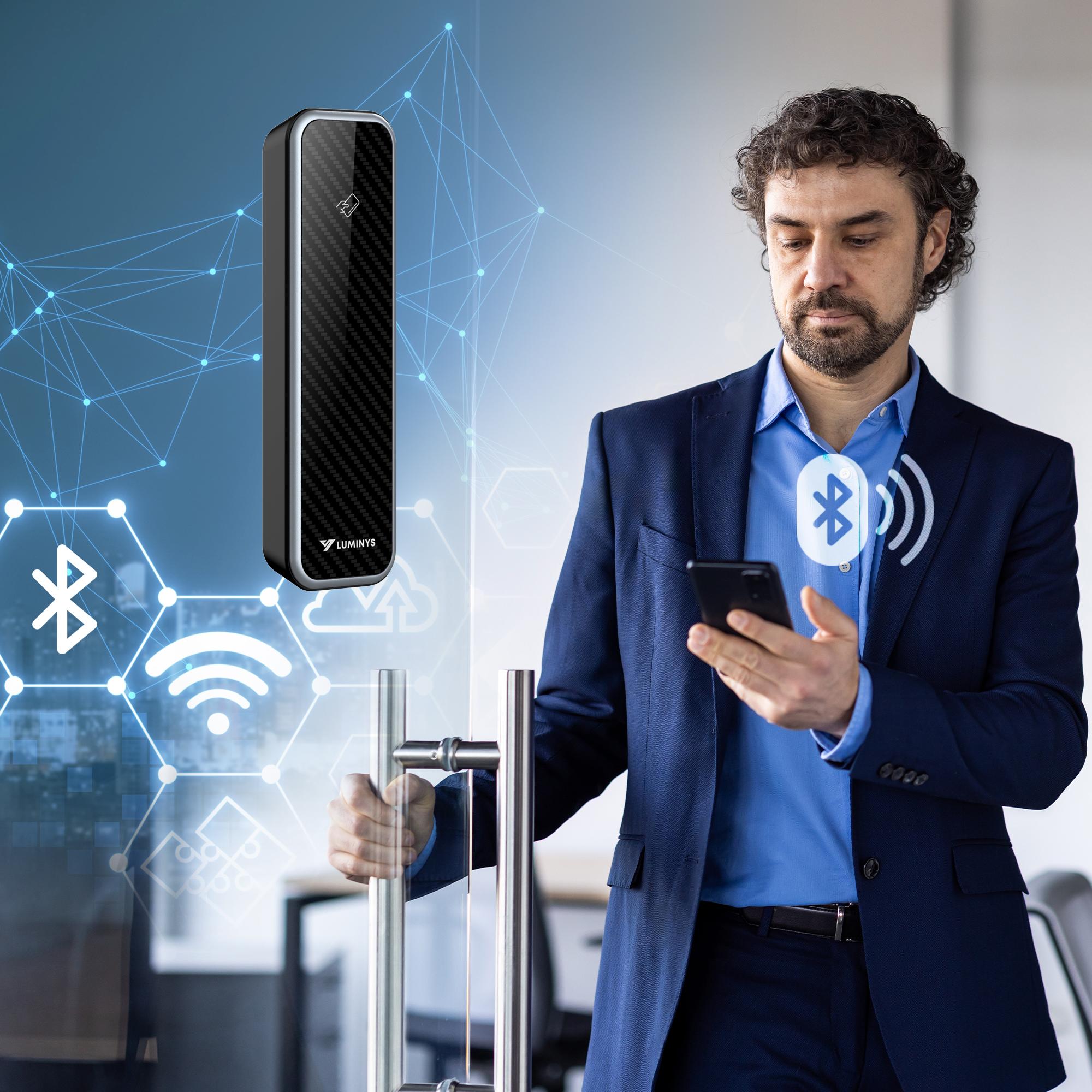

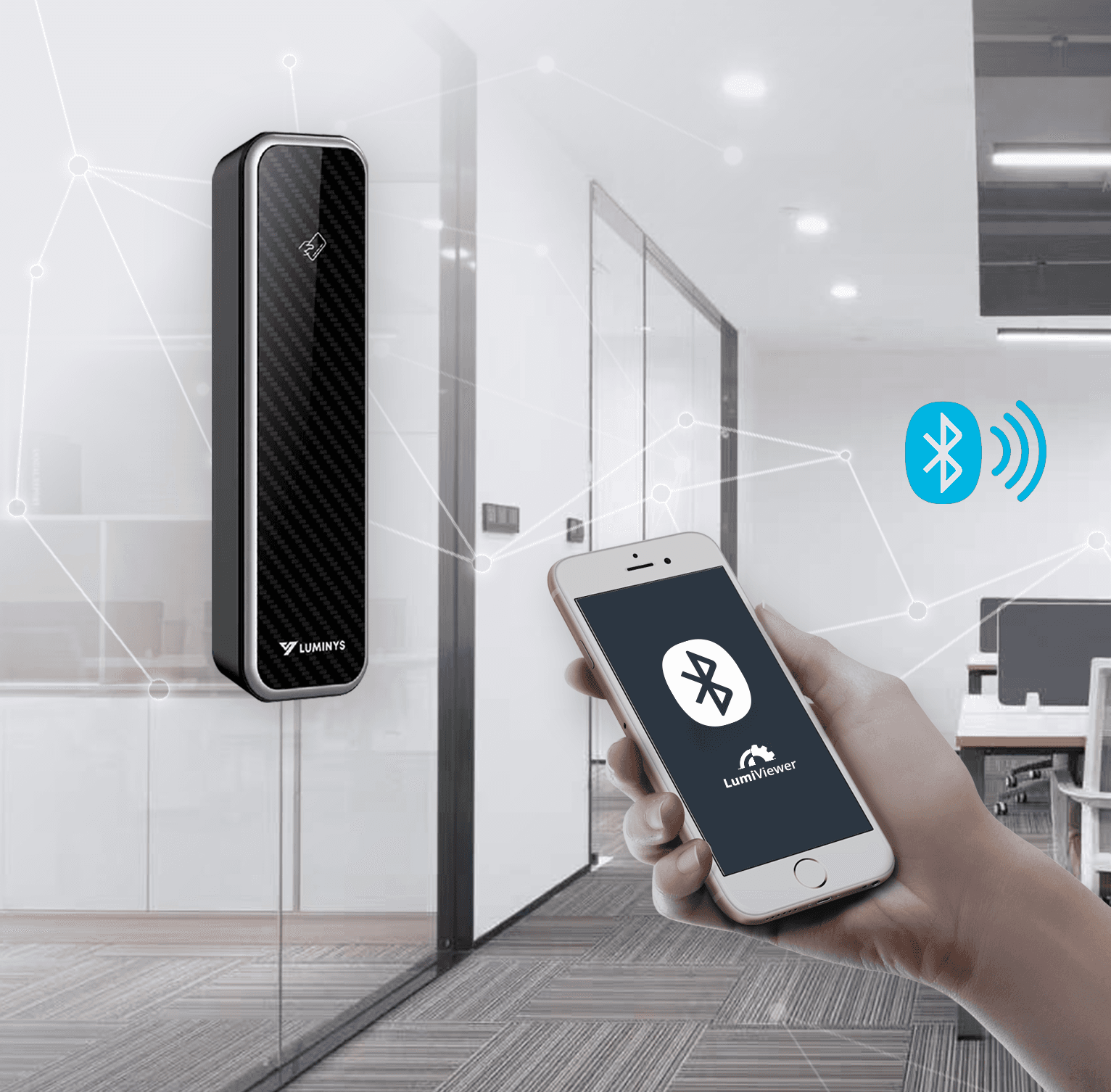

Bluetooth Support

The controller enables secure Bluetooth access through the LumiViewer app, offering remote door control and access logs.

Web-Centric Configuration

Configure and control access via a built-in web interface—no need for extra software.

Products Grouping

Vertical Solutions

Office Building

Secure multiple floors with Bluetooth-enabled and RFID readers, all managed centrally via the Web Access Controller.

Healthcare

Control access to sensitive areas like labs and patient rooms using both Bluetooth and card-based access systems.

Retail

Ensure secure entry for employees and prevent unauthorized access using Bluetooth and traditional card readers.

Education

Manage access to schools or dormitories with scalable systems, supporting both Bluetooth and RFID credentials.

Education

Manage access to schools or dormitories with scalable systems, supporting both Bluetooth and RFID credentials.

Core Technology Features

Compare Models

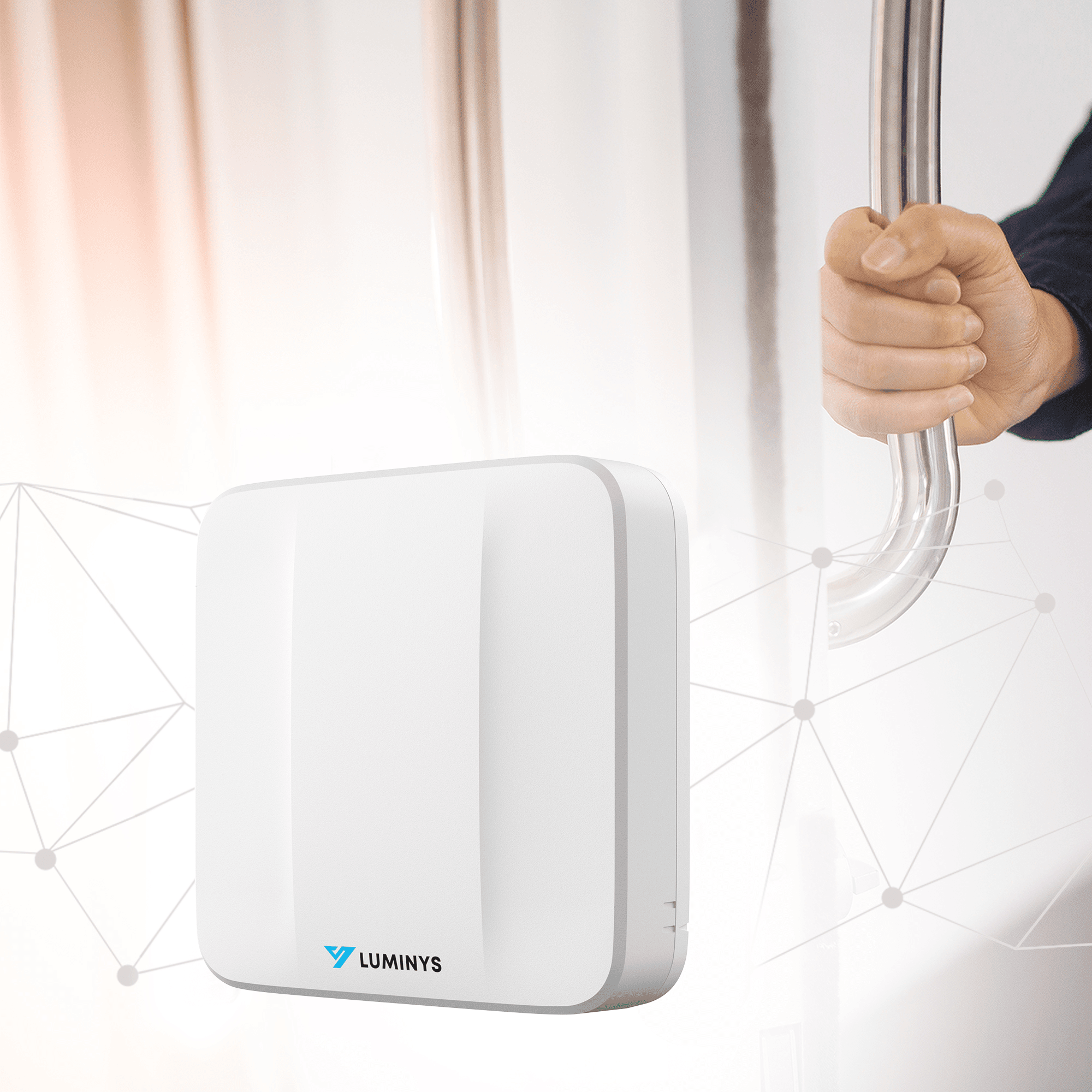

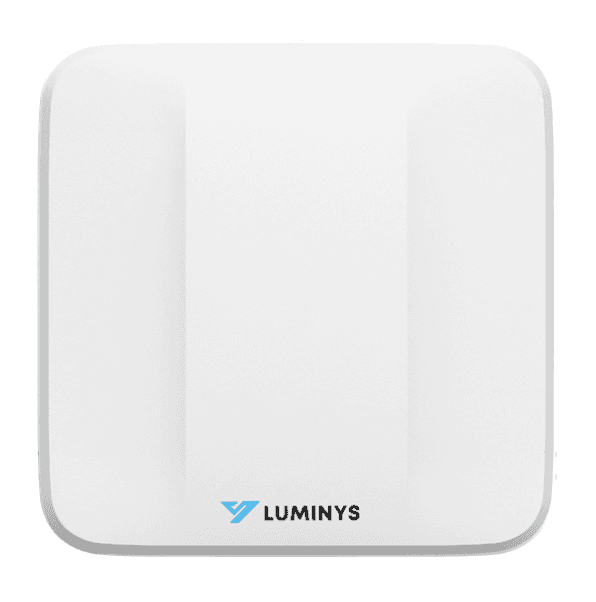

Web Access Controller (C-2PA)

Feature	C-2PA Web Controller
Doors Managed	Up to 30 (with sub-controllers)
User Capacity	Up to 1,000 users
Card Capacity	5,000 cards
Bluetooth Capacity	Up to 5,000 mobile credentials (up to 5 per user)
Record Capacity	300,000 events
Verification Methods	Card, Password, Bluetooth, Biometric (via integrated devices)
Communication Protocols	RS-485, Wiegand, TCP/IP
PoE Support	Yes (Standard PoE)
Power Supply	12V DC/ PoE
Built-in Server	Yes, Web-Centric Configuration
Alarm Input/Output	2 Input, 2 Output
Real-Time Monitoring	Supported via LumiViewer app
Operating Environment	Indoor
Dimensions	7.34" x 7.31" x 2.30"
Certifications	FCC, IC
Mounting	Surface / Guide Rail Mount
	Supported (Per Door License)

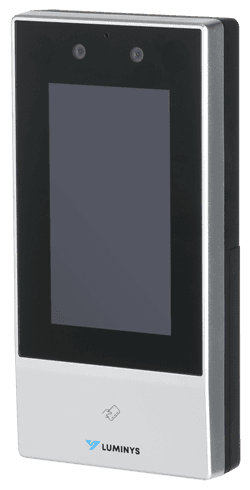

Facial Recognition Terminal


Feature	C-F4A
Authentication	Face, Card, PIN
Face Capacity	10,000 templates
Verification Speed	< 0.2 sec Recognition
Mask Detection	Yes
Liveness Detection	Yes
Connectivity	RS-485, TCP/IP
Integration	Works with C-2PA Controller

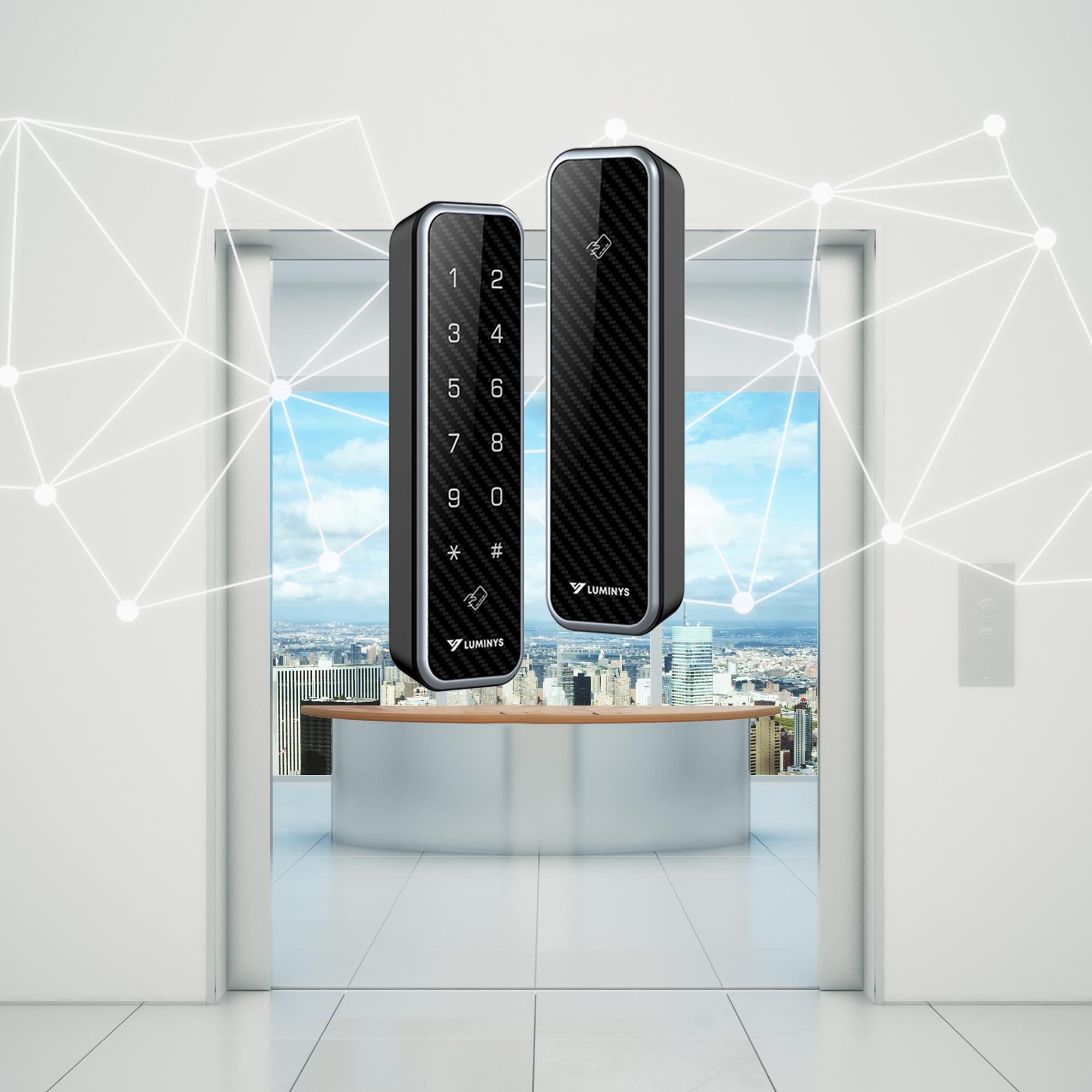

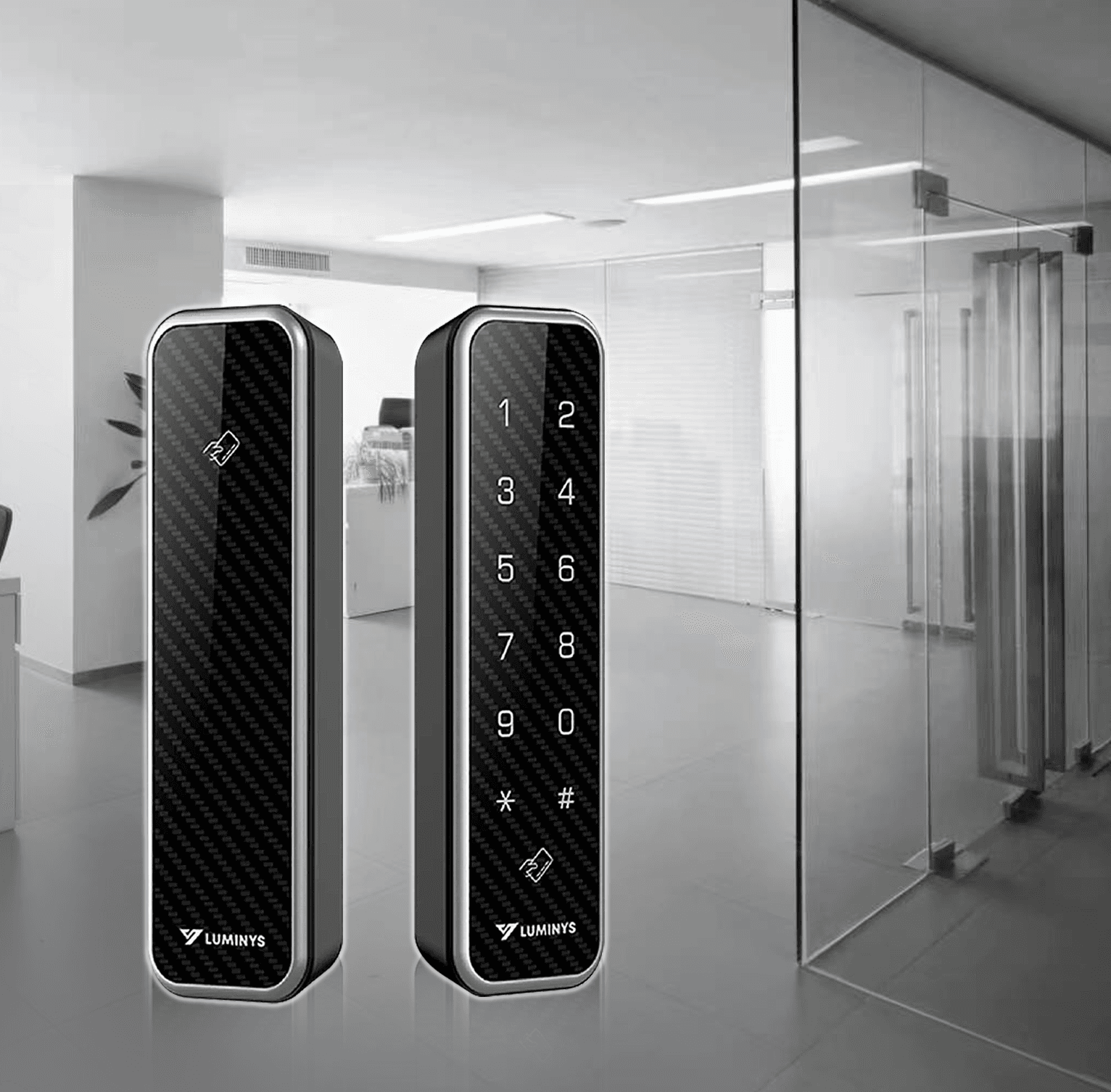

Access Readers


Feature	RD1PM	RD1BN	RD1PN	RD1CW
Product Type	Vandal-proof Card Reader	Bluetooth & IC Card Reader	Mullion Mount Card Reader	Waterproof Card Reader
Card Type	Mifare (IC Card)	Mifare (IC Card), Bluetooth	Mifare (IC Card)	Mifare (IC Card)
Bluetooth Support	No	Yes (BR/EDR/BLE Bluetooth)	No	No
Verification Methods	Card, Password	Bluetooth, Card	Card, Password	Card
Protection Level	IK08	IP66	IP66	IP66
Communication Protocols	RS-485, Wiegand	RS-485, Wiegand, Bluetooth	RS-485, Wiegand	RS-485, Wiegand
Card Reading Distance	0 - 1.18 inches	0 - 1.97 inches	0 - 1.97 inches	0 - 1.97 inches
Bluetooth Range	N/A	0.66 ft (short), 32.81 ft (long)	N/A	N/A
Operating Temperature	14°F to 131°F	-22°F to 158°F	-22°F to 158°F	-22°F to 158°F
Operating Environment	Indoor	Indoor/Outdoor	Indoor/Outdoor	Indoor/Outdoor
Dimensions	4.33" x 3.35" x 1.02"	5.31" x 1.57" x 0.59"	5.31" x 1.57" x 0.59"	4.84" x 3.38" x 0.59"

Accessories

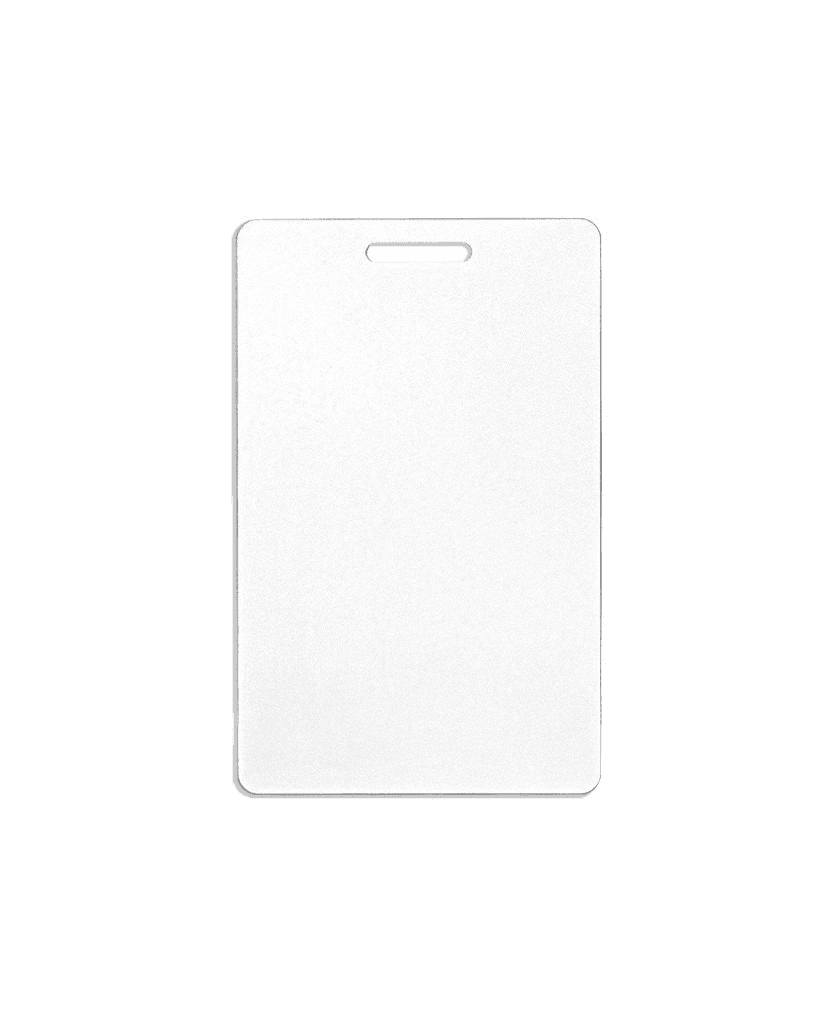

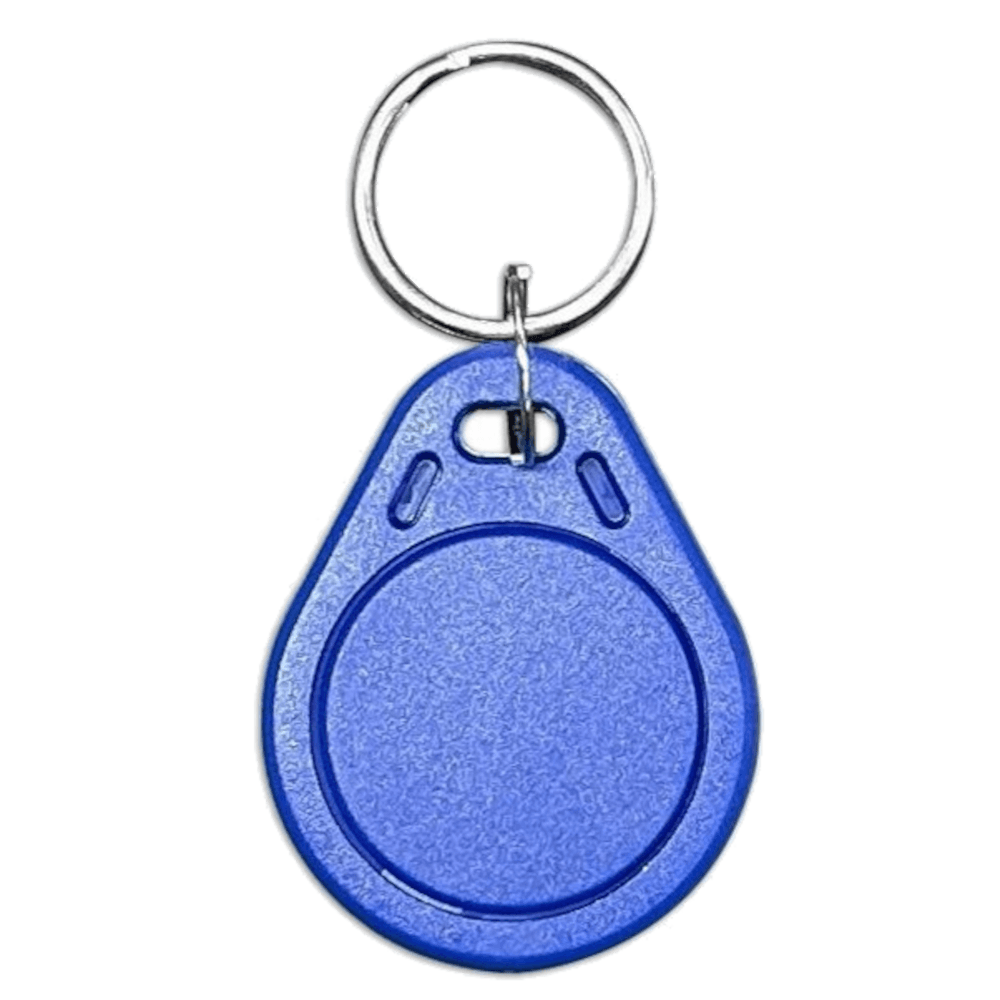

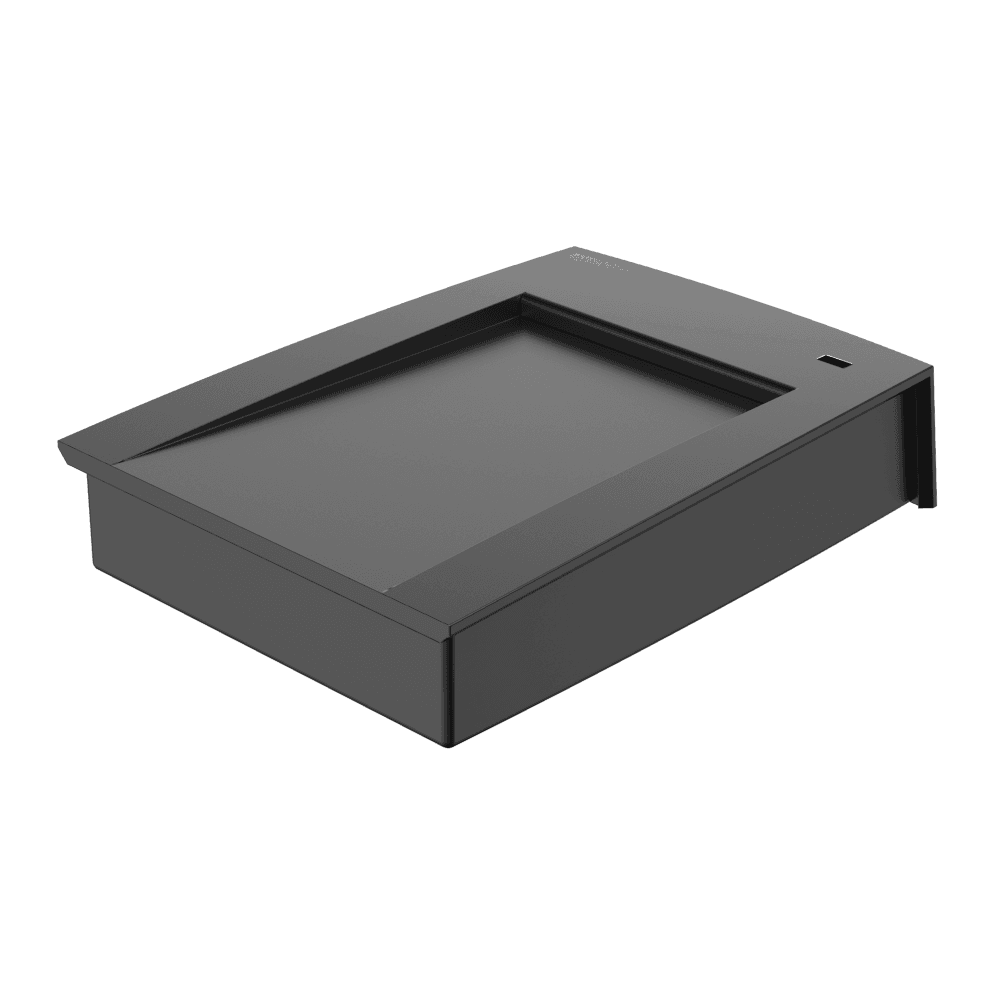

Models	ED1CU	E-CS50 (IC Card), E-FS50 (IC Fob)
Product Type	Card Issuer	User Credentials
Supported Credential Type	MIFARE IC Credentials	MIFARE IC (card & fob)
Card Reading Frequency	13.56 MHz	13.56 MHz
Use Case	Issuing and enrolling access cards	Day-to-day user access
