LumiPower

Extends power and data up to 3,000 feet without repeaters

LumiPower technology enables Power over Ethernet transmission and data delivery up to 3,000 feet without requiring repeaters or additional power sources. Ideal for expansive security infrastructure, LumiPower ensures consistent connectivity and dependable power management

Streamlined Installations

Simplifies the installation process by reducing the amount of labor and materials required.

Optimal Device Placement

Enhances network performance by allowing devices to be placed in the most effective locations.

Higher Cost Efficiency

Reduces overall costs by eliminating the need for additional power infrastructure.

LumiPower Features

Long-Distance Connectivity

Connect to, power, and transmit data to devices up to 3,000 feet away from the switch.

PoE and PoE+ Support

Supports network cameras, including PTZs, and has backwards compatability.

Remote Power Management

Restart or power devices remotely from NVRs or network switches.

Explore the Lineup

N5-C Series:
LumiColor

Learn More

N5-L Series:
LumiLuxSmart

Learn More

Example of LumiPower Using Network Camera and NVR:

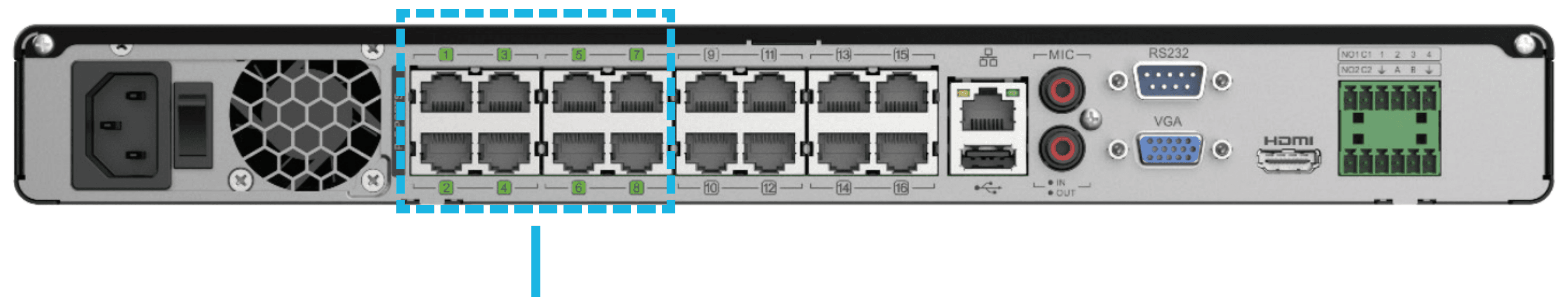

LumiPower is available on ports 1 to 8 on R5 NVR Models (R52-8PA, R52-16PA, R54-32PA)

NOTE: LumiPower requires the use of a LumiPower-enabled switch or NVR port and LumiPower-enabled cameras.

Technical:

Power Capacity:

IEEE 802.3af (PoE) up to 15.4 watts, uses two pairs of wires for power.
IEEE 802.3at (PoE+) up to 25.5 watts, uses all four pairs of wires for power.
IEEE 802.3bt (PoE++) up to 90 watts, uses all four pairs of wires for power.

Device Support:

IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) is suitable for devices with higher power requirements, like PTZ cameras and advanced wireless access points.

Backward Compatibility:

IEEE 802.3at (PoE+) is backward compatible with IEEE 802.3af (PoE) devices, meaning you can use IEEE 802.3at switches to power IEEE 802.3af devices. IEEE 802.3bt (PoE++) is backward compatible to IEEE 802.3at (PoE+).
