 The Optical System
.

The original dedolight patent introduced a second lens which provides several advatages over traditional Fresnel systems:

  • Produces a unique character of light.

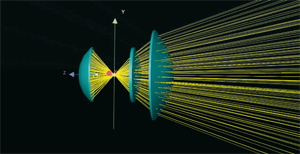

  • Pre-collects the light from the lamp and reflector allowing the use of a smaller front lens and thus enabling the construction of a smaller light head.
 The Optical System - 1
.
.
  • Provides light output comparable to much larger light sources.
 The Optical System - 2
.
.

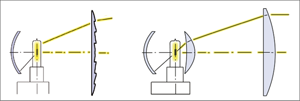

  • Raised the light efficiency in spot position to 18 % versus only 6 % found in traditional Fresnel designs.
 The Optical System - 3
.
.
  • Provides a focusing range (change in intensity from flood to spot) of 25 : 1 versus the 3 : 1 range of similar lights.
 The Optical System - 4
.
.
  • Provides a clean beam without stray light as usually found in Fresnel lights.
 The Optical System - 5
.
.

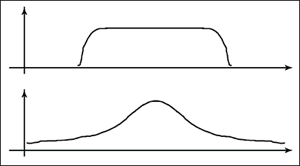

  • Offers very even light distribution within the beam versus hot spots produced by Fresnel studio lights.
 The Optical System - 6
