The Mechanics
.

An additional patent introduced the added movement of the second lens in relation to the lamp and reflector all being controlled by one focusing knob. This technology was first used in the dedolight Series 400 as a triple zoom focus.

  • 20 :1 variation of intensity from spot to flood – Series 400
  • 25 :1 variation of intensity from spot to flood – Aspherics²

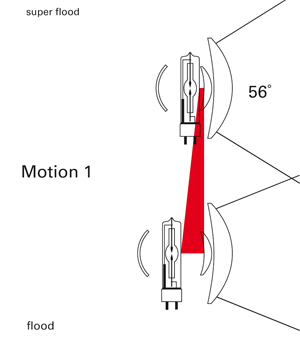

Motion 1
From flood to super flood
Lamp and mirror move closer to the second lens.
The Mechanics - 1
.
.

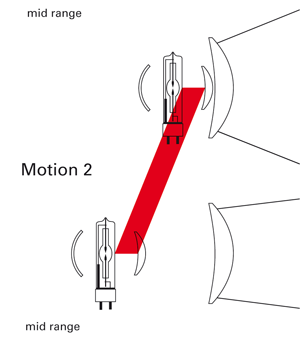

Motion 2
Mid range
Lamp, mirror and second lens move in equidistant unison.
The Mechanics - 2
.
.

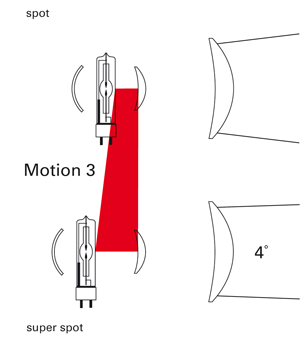

Motion 3
Spot to super spot
Second lens stops while the lamp and mirror continue their travel.
The Mechanics - 3
