The Imager Projection Attachment
.

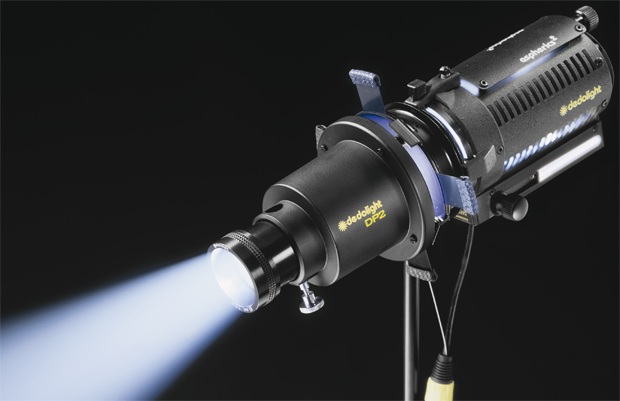

The Imager Projection Attachment

.
Building highly perfected optics for dedolight light heads, allowed us to design imaging attachments with matching optics for unprecedented precision, quality of image and light/shadow shapes.

  • High light efficiency due to matched optics
  • Perfect contrast rendition
  • Very low distortion
  • No color fringing (as displayed by practically every traditional profiler/ellipsoidal)
.
For the Series 400 we have designed several unique projection lenses which provide extreme light transmission and remarkable qualities.

  • Wide variety of accessories:
    • Framing shutters
    • Iris
    • Gobo holder (steel and glass)
    • Slide projection with heat reducing filter and forced air cooling
    • Optional image plane adjustment to correct focus shifts in off axis projections
    • Gobo rotator

Note:
dedolight heads and Imager projection attachments are designed with a matching optical system to optimize light output and distribution. Our Imagers are occasionally used on light heads of other manufacturers. Although possible, efficiency and image quality will be drastically reduced.
